LV Line Reactor For BESS
Line Reactor Specs
• 480V 3Phases Dry Type Reactor
• .260 mHy @ 2,270 ARMS
• ISaturation: 3,000A
• With CT’s and RTD
• 80 Degree Rise
• 1.4 MVAR
• 7000 Lbs
• Cu
Key Features
• 100% Made In USA
• Quietest reactors on the market
• Custom engineered based on your specifications
• Can be Customized with CT’s, PT’s, and Temperature monitoring

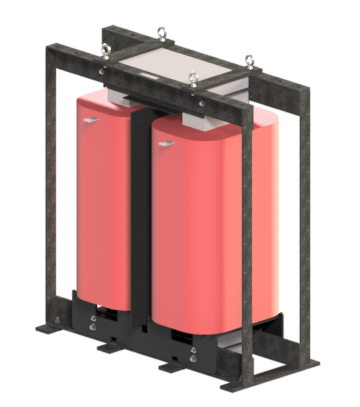

MV Line Reactor For BESS
Line Reactor Specs
• 15k Single Dry Type Reactor
• .21 mHy @ 550 ARMS
• AI Windings
• 80 Degree Rise
• 2.4 MVAR
• 6200 Lbs
Key Features
• 100% Made In USA
• Up to 35 kV System
• Quietest reactors on the market
• Custom engineered based on your specifications
• Can be Customized with CT’s, PT’s, and Temperature monitoring

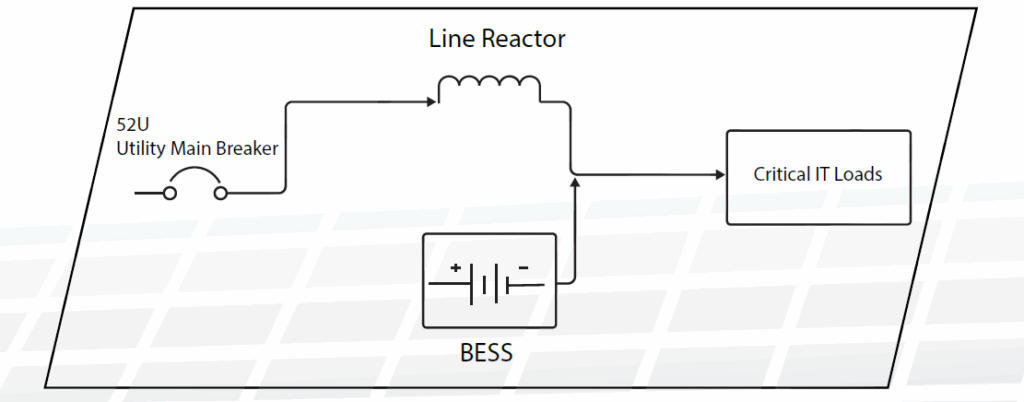

Key Functions of Line Reactors in BESS / Data Center
Harmonic Mitigation
Reduction of Total Harmonic Distortion (THD) back into the grid, ensuring compliance with power quality standards (e.g., IEEE 519).
Protection from Transients
Guard sensitive semiconductor components (IGBTs, diodes) from voltage spikes and current surges.
Inrush Current Limitation
Limit the rate of change of current, mitigating stress during rapid charging or discharging (cycling) cycles.
Voltage Stabilization
Stabilize the DC bus, preventing nuisance trips caused by line voltage fluctuations.
Low Voltage (LV) Line Reactor – Complete Specifications
| Parameter | Specification |
|---|---|
| Voltage | Up to 800VAC |
| Phase | 3 Phase Dry Type Reactor |
| Inductance @ Current | .260 mHy @ 2,270 ARMS |
| Saturation Current | 3,000A |
| Temperature Rise | 80°C Rise |
| MVAR | 1.4 MVAR |
| Weight | 7,000 Lbs |
| Windings Material | Cu / AL (Copper or Aluminum – Customizable) |
| Additional Features | CT’s, RTD available |
Medium Voltage (MV) Line Reactor – Complete Specifications
| Parameter | Specification |
|---|---|
| System Voltage | Up to 35 kV System |
| Power Rating | 15kVA Single Phase Dry Type Reactor |
| Inductance @ Current | .21 mHy @ 550 ARMS |
| Temperature Rise | 80°C Rise |
| MVAR | 2.4 MVAR |
| Weight | 6,200 Lbs |
| Windings Material | Cu / AL (Copper or Aluminum) |
| Additional Features | CT’s, RTD available |
