Inverter / Transformer Skids

Designed, engineered, and manufactured “offsite” in Clayton, NC, prebuilt scalable systems are shipped in purpose-built packages i.e. skid mounted, ISO containers, power modules, enclosures, power houses,  E-buildings recognized for rugged reliability and value. Typical mechanical equipment and electrical distribution may include integrated switchboards, PLCs, panels, transformers, inverters, energy storage, motor control centers, HVAC, medium voltage.

Offsite Fabrication of Skids for Solar

  • Inverter / Transformer Skids – PCX provides complete design build packages to integrate DC disconnects, solar inverters, and power transformers on to a high strength steel base.



  • Switchgear / Transformer Skids – For string inverter systems PCX offers integration of switchgear, transformers and ancillary equipment onto a pre-engineered skid package.

Inverter / Transformer Skids – The PCX Advantage

Custom Metal Designs

Shipment Less Transformer

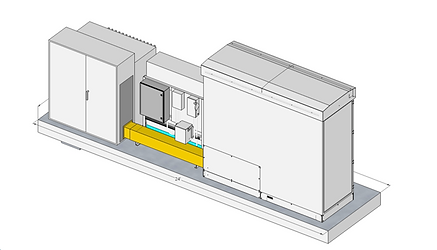

Fully Integrated Ortho View

Engineering



AutoDESK® Inventor®

  • 3D Models of design

  • MES Mechanical Event Simulation

  • Flow Analysis Modeling

  • Heat Transfer Analysis

ETAP® Electrical Design Software

  • Network analysis – AC & DC Systems

  • Intelligent one-line diagrams

  • Arc flash and short circuit analysis

Manufacturing

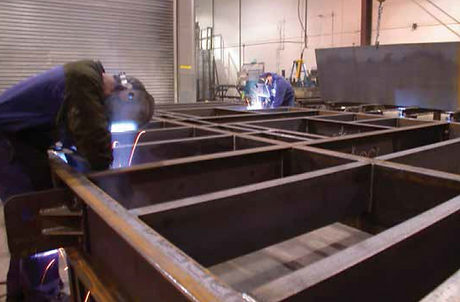

Structural Steel & Sheet Metal Fabrication

  • Welding - AWS certified welders

  • UL 870 - Wireway, Auxiliary Gutters & Fittings

Painting & Coatings

  • Sandblasting capability

  • Paint booth w/drying capabilities

Enclosure Fabrication

  • UL QRXA – Commercial & Industrial Prefabricated Buildings

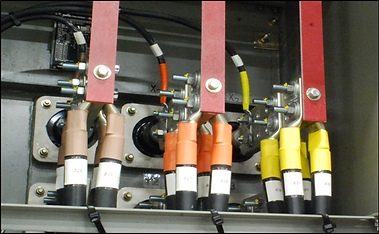

Electrical Assembly

  • UL 508A Industrial Control Panels

  • UL 891 Dead Front Switchboards

Inverter / Transformer Skids – The PCX Advantage

Quality

APQP Process (Advanced Product Quality Planning)

  • DFMEA – Design Failure Mode Effects Analysis

  • PFMEA – Process Failure Mode Effects Analysis

  • Quality Control Plan with each project

  • Quality Inspection Plans (“Yellow Book”)

  • Record Keeping (including lot control and serialization)

Integrated Build and Inspection Processes

  • Third party accreditation - UL, ETL, CSA

Coordination, Shipment, and Notification

PCX Corporation is a proven high quality mechanical fabricator that integrates a broad range of electrical gear into scalable modular power and electrical distribution systems. Built to Customer Specifications, the units are transportable to a global customer base of commercial construction, data centers, electrical and power distribution users.

As the company enters its third decade, it continues to rank at the forefront of new technology with innovative designs and a reputation for getting the job done right!

Example - Torque Seal Standards

Why PCX?

PCX is a leader in the offsite manufacturing of electrical and  mechanical systems for Commercial Construction, Industrial/Utility and Modular Data Center markets. PCX was one of the early concept originators of offsite prefabricated electrical solutions. The primary strength of the company has always been the ability to engineer, integrate and fabricate complex electrical and mechanical systems into large custom enclosures or skid based systems. All projects are engineered and built in compliance with the NEC (National Electric Code) and UL Classifications, which results in a more rapid approval by the local AHJ (Authority Having Jurisdiction).

Beginning with their initial discussions with you, and throughout new projects and/or facility expansions, they employ a creative approach to supporting your needs. PCX collaboratively aligns with you as a strategic partner, providing modular solutions that will enable your organization to mitigate risk and reduce overall costs through accelerated construction schedules.

Manufacturing

All PCX systems are designed and built in their manufacturing facility located in Clayton, North Carolina approximately 20 minutes outside of Raleigh, North Carolina. All systems are U. L. classified and built to exacting quality standards driven by the customers’ specifications under the guidelines of ISO 9001:2015

The Advantages of Offsite Fabrication

Offsite fabrication is a process which involves the design and manufacture of complex assemblies and/or modules where the fabrication occurs at a remote location normally away from the work site.

The typical benefits of offsite fabrication are reduced construction cycles, improved space utilization, and lower costs due to reduced change orders. To capture the full benefits of offsite fabrication, a project strategy must be employed that will change the orientation of the project process from the construction to the manufacture and installation.

Benefits of Offsite Manufacturing

  • Reduced construction cycle time

  • Standard and consistent quality

  • Predictive costs and predictive schedule

  • Avoidance of weather delays

  • Factory commissioning reduces punch list items

  • Less skilled labor required at work site

  • Reduced safety risk at site

  • Reduction of material waste at site

  • Early permanent power

  • Reduced overall construction costs

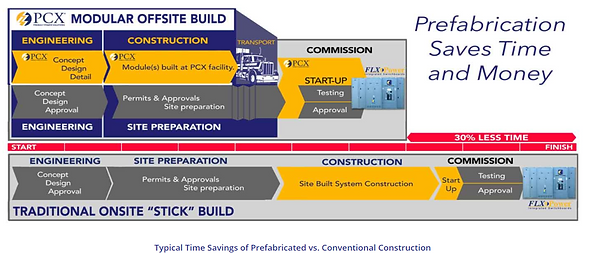

Prefabrication Saves Time and Money

Case Study 6.25MW Project

  • 2 week acceleration of 6.25 MW Project

  • Reduction of field personnel, travel costs and reduced QC etc..  $100K per year

  • Reduction in transaction costs associated with EC Management?

  • Engineering savings?

  • Elimination of Site Waste?

  • Accurate Consistent Quality

  • Available UL Certification

  • Improved Site Safety (Insurance Premiums)

  • More projects per year with same team
